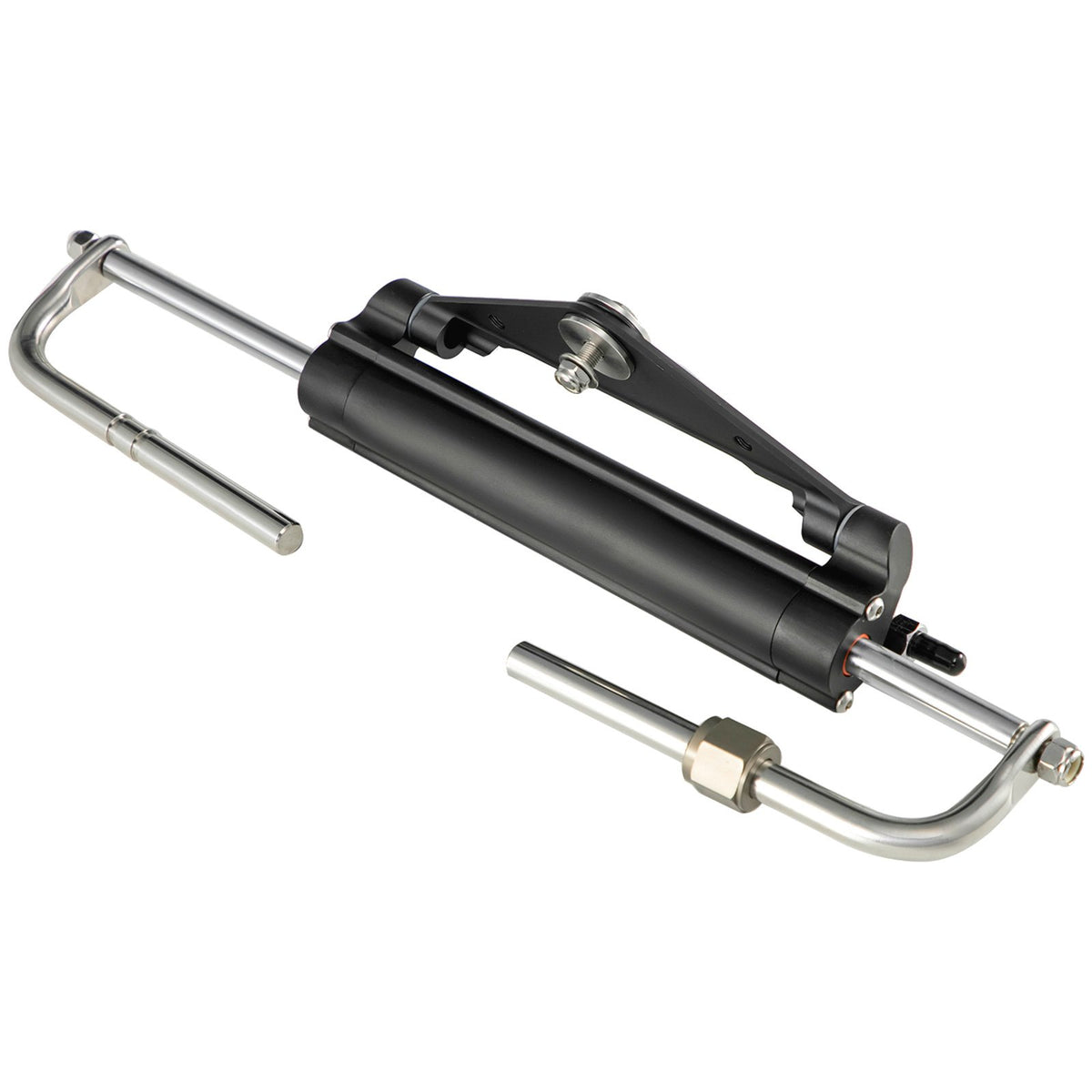

VEVOR Hydraulic Steering Cylinder HC4645H Front Mount Hydraulic Outboard Marine Steering Cylinder Suit for Up to 150HP Boats Steering Powerful Performance Advanced Crush Resistance Built-In Two-Way Lock Positionable O-Ring (ORB) Aluminum Alloy Casing Wide Application Strode : 197.3mm,Volume: 117CC,Tube I.D: 32mm,Applicable: Up to 150HP,Output Force: 409.7kgf,Cylinders: HC4645H,Rod I.D: 16mm
Features
HC4645H Front Mount Cylinder: HC4645H steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
ORB Fitting: The Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
