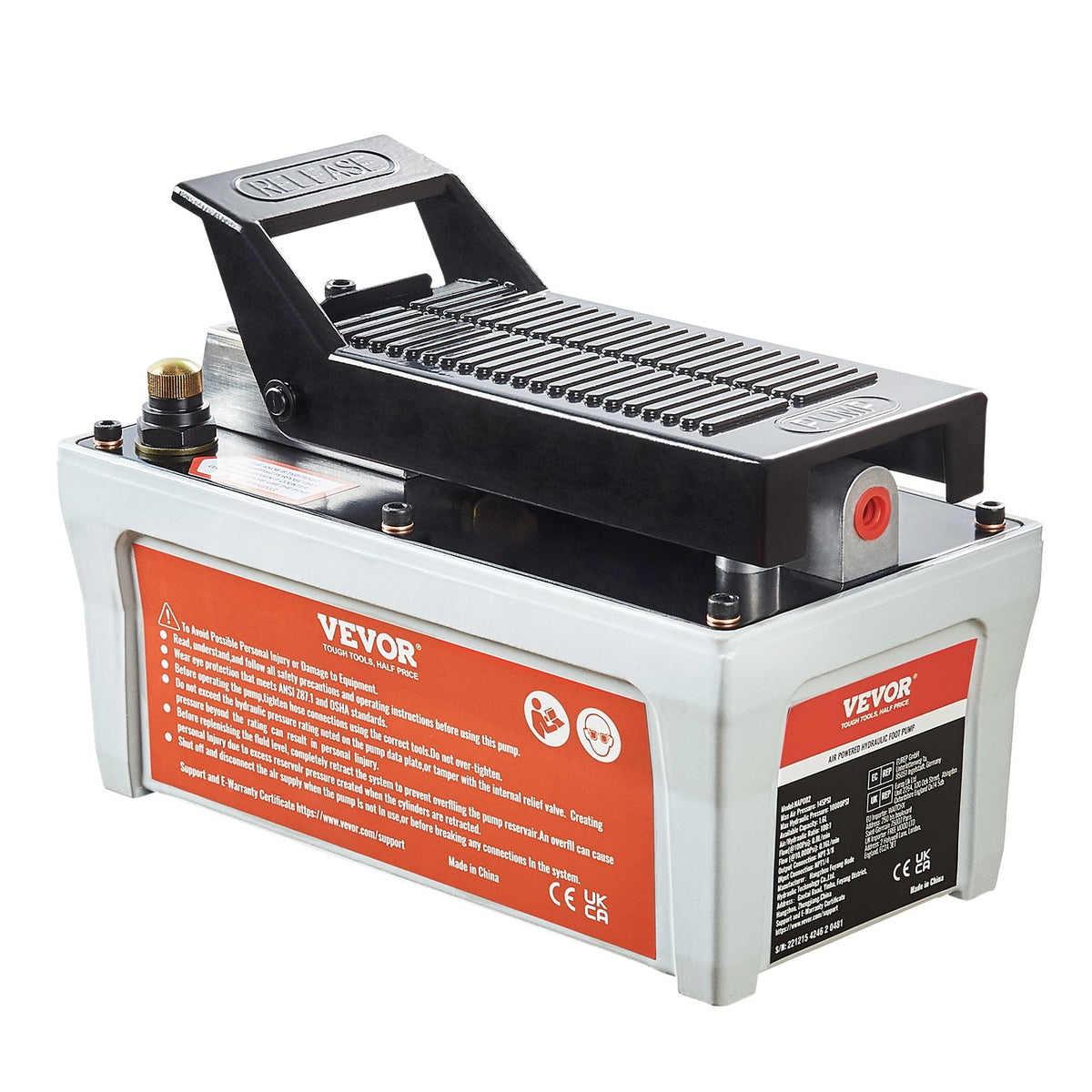

VEVOR Air Hydraulic Pump, 10,000 PSI 1/2 Gal Reservoir, NPT 3/8" Oil Outlet, NPT 1/4" Inlet, 6.6 ft Pipe, Foot Actuated Hydraulic Pump Air Treadle for Auto Body Frame Machines and Pulling Post, Gray

VEVOR Air Hydraulic Pump, 10,000 PSI 1/2 Gal Reservoir, NPT 3/8" Oil Outlet, NPT 1/4" Inlet, 6.6 ft Pipe, Foot Actuated Hydraulic Pump Air Treadle for Auto Body Frame Machines and Pulling Post, Gray

$195.33 AUD
$195.33 AUD
Sale Sold out
Shipping calculated at checkout.

VEVOR Air Hydraulic Pump, 10,000 PSI 1/2 Gal Reservoir, NPT 3/8" Oil Outlet, NPT 1/4" Inlet, 6.6 ft Pipe, Foot Actuated Hydraulic Pump Air Treadle for Auto Body Frame Machines and Pulling Post, Gray
NPT 1/4" Air Inlet
NPT 3/8" Oil Outlet
Simple Foot Pedal Control
6.6 ft Hydraulic Oil Pipe
Built to Last
Use It Anywhere
Hydraulic Pump Flow: 0.8 L/min (No-load); 0.16 L/min (Load),Input Air Pressure Range: 110 PSI-145 PSI,Product Size (L x W x H): 10.3 x 5.4 x 7.3 in/262 x 136 x 186 mm,Air Inlet: NPT 1/4",Model: NAP002,Product Weight: 19.6 lbs/8.9 kg,Oil Tank Capacity: 98 in³/1.6 L,Maximum Output Pressure: 10,000 PSI,Oil Outlet: NPT 3/8"

Features

  • Extended Oil Reach: Are you ready to stretch further without breaking a sweat? This air hydraulic pump comes with a lengthened oil pipe of 6.6 ft/2 m, allowing for longer-distance operation and enhanced security. In addition, it includes a hydraulic coupler, air inlet adapter, and PTFE tape to meet all of your needs.
  • Non-slip and Shock-proof: With two fixing screw holes located at the bottom, the foot actuated hydraulic pump can be securely positioned, minimizing sliding and vibration during operation. This results in a quieter working environment, providing you with a more comfortable experience.
  • One Step Is All It Takes: Our foot operated air/hydraulic pump is equipped with hydraulic oil, eliminating the need for any additional purchases. It is ready to use straight out of the box! The user-friendly foot-actuated design makes operation more labor-saving. Simply apply pressure by gently stepping on it, and release pressure by rebounding back.
  • Sturdy & Compact Construction: This hydraulic air pump is designed for challenging industrial applications thanks to its featured aviation-grade aluminum pump core and high-quality metal shell. With a 98 in³ oil tank, it has a larger capacity to meet heavy-duty needs. Additionally, the internal relief valve protects hydraulic components, regardless of hydraulic pressure.
  • Wide Application: The air actuated hydraulic treadle pump is an excellent choice for single-acting ram applications in industrial and construction settings. It is an ideal all-around power house to use with a variety of rams, presses, and hydraulic pullers that operate at pressures of up to 10,000 PSI.

Specifications

  • Color: Gray
  • fuel tank capacity: 1.6 L
  • Product weight: 9.70000 kg
  • Height: 25.000 cm
  • Width: 23.000 cm
  • Length: 32.000 cm
  • Goods weight: 9.70000 kg
  • Shipping weight: {"unit":"lb","value":21.38} kg
  • Condition: new
